Cooling Jacket Advanced for PI Infrared Cameras and High-Performance Pyrometers

The Optris CoolingJacket Advanced is a versatile protective housing designed for optris infrared thermometers and cameras, enabling operation in high-temperature industrial environments. While infrared cameras will operate up to 315 °C (599 °F), pyrometers can withstand 250 °C (482 °F) ambient temperature. It features water cooling with optional protective windows, ensuring optimal performance and longevity of the sensors. The modular design allows for the easy integration of various devices and optics, while the quick-release chassis facilitates straightforward sensor maintenance. The extended version can incorporate additional components such as the PI NetBox, USB Server Gigabit, and Industrial Process Interface. The CoolingJacket Advanced is constructed from durable V2A material, offers an IP65 environmental rating, and includes an air purge to keep the infrared sensor’s optics clean.

• Compatible with PI Infrared Cameras and High-Performance Pyrometers
• High-temperature operation: up to 315 °C (599 °F)
• Pyrometer limit: 250 °C (482 °F)
• Water cooling
• Optional laminar air purge system
• Optional protective windows

General Specification

Operating temperature range: 0 °C to 315 °C (32 °F to 599 °F) (Pyrometers limited to 250 °C / 482 °F)
Storage temperature range: 0 °C to 50 °C ( 32 °F to 122 °F)
Relative humidity: 10 … 95 %, non-condensing
Environmental rating: IP65
Material: stainless steel

Standard version:
Size: 271 mm x 166 mm x 182 mm (10.67 in x 6.54 in x 7.17 in)
Weight: 5.7 kg (201.06 oz)

Extended version with for USB Server or PINetbox
Size: 426 mm x 166 mm x 182 mm (16.77 in x 6.54 in x 7.17 in)
Weight: 7.8 kg (275.14 oz)

Water Cooling

Water flow rate: 1 … 5 l/min
Cooling water temperature: <50 °C (122 °F)
Cooling water pressure max. 15 bar (217 psi)
Cooling water fittings: G1/4″ Internal thread, G3/8″ External thread

What is the maximum ambient temperature the CoolingJacket Advanced can withstand?

Up to 315 °C (599 °F) for infrared cameras, and 250 °C (482 °F) for pyrometers.

What components of the CoolingJacket Advanced need to be ordered separately for it to function correctly?

The focusing unit and front part are exchangeable and must be ordered separately.

What is the maximum ambient temperature that the cables for the CoolingJacket Advanced can withstand, and how high can the cable cooling temperature go?

Cable available up to 250 °C (482 °F) ambient temperature and cable cooling up to 315 °C (599 °F) .

What additional components can be integrated into the extended version?

PI NetBox, USB Server Gigabit, and Industrial Process Interface (PIF).

What is required to install the CTlaser or CSlaser sensor in CoolingJacket or CoolingJacket Advanced?

The connector version is needed to install the CTlaser or CSlaser sensor in the CoolingJacket Advanced.

How is the Cooling Jacket Advanced installed? Is there an installation guide? Do I need any special tools or additional components?

The manual details a straightforward process for installing the Cooling Jacket Advanced. No prior experience or special tools are needed, making it accessible to all.

What types of accessories are compatible with the Cooling Jacket Advanced? Is there a list of available accessories?

The manual provides a comprehensive list of accessories with their applications and part numbers for easy ordering, ensuring you have all the information you need.

How is the Cooling Jacket Advanced cooled? What type of coolant should be used? What is the required water temperature and flow rate?

The cooling water input and output have a G1/4″internal thread and a G3/8″external thread. The maximum cooling water pressure is 15 bar (271 psi). While connecting the hoses, keep the Cooling Jacket inclined at an angle of approximately 45 to avoid air bubbles.

What materials is the CoolingJacket Advanced constructed from?

The housing is made from durable stainless steel V2A material.

Does the CoolingJacket Advanced have an option for air purging?

Yes, a standard air purge is included and optional laminar air purge systems are supported.

• CoolingJacket Advanced Housing

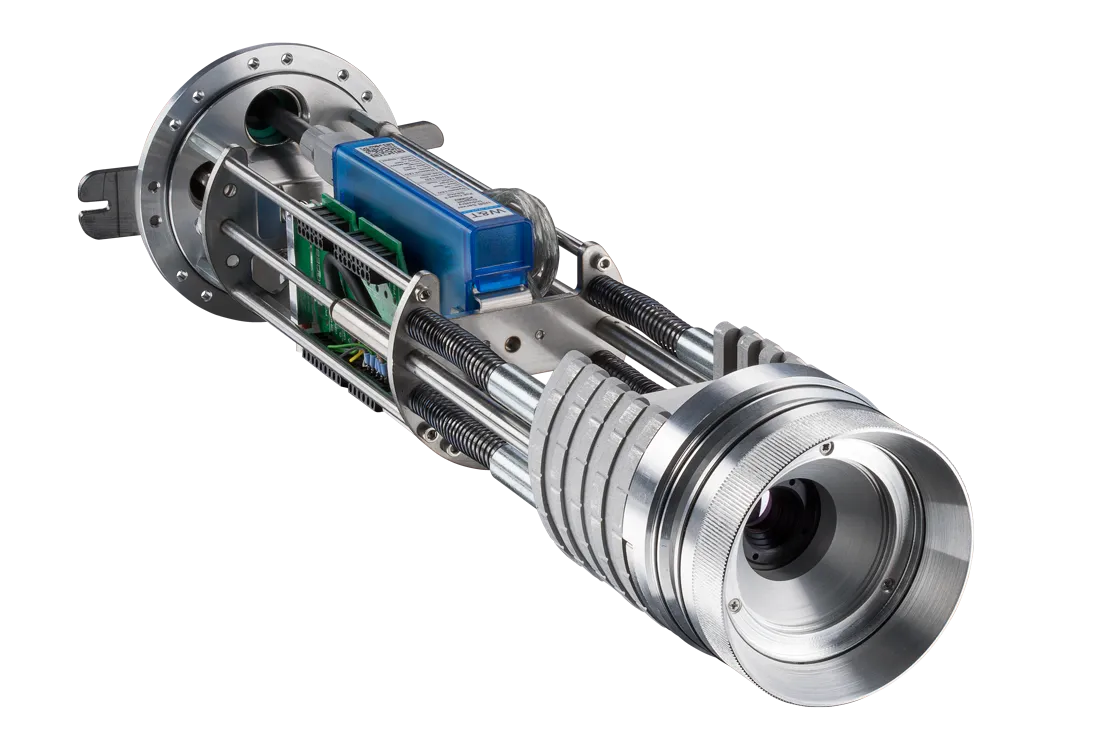

• CoolingJacket Advanced chassis
• Mounting bracket for CoolingJacket Advanced
• Installation instructions
• Optional mounting accessories PI Netbox or USB server Gigabit (extended version)
• Optional mounting accessories Industrial Process Interface (extended version)
