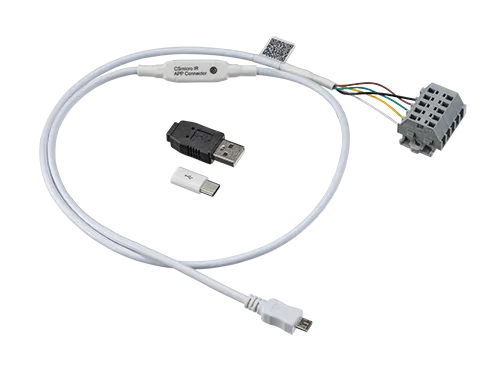

USB Connection Cable for Optris Pyrometer

USB adapter cable with USB-C plug and adapter for USB-A, compatible with IRmobile (Android) and CompactConnect/ CompactPlus Connect (Windows).

The IR App Connector cable is an accessory that connects Optris pyrometers and computational devices. Compatible with USB-C and USB-A ports, this cable enables direct data transfer and power supply, facilitating real-time monitoring and analysis through the IRmobile app on Android or the CompactConnect or CompactPlus Connect Software on Windows computers. Ideal for commissioning and field applications, the IRmobile app ensures that users can access and manage settings, enhancing operational efficiency and flexibility. The IR App Connector cable is an essential tool for engineers needing quick and easy access to the infrared camera data or settings from their smartphones or tablets.

General Specifications

• Environmental rating: IP65 (Nema-4)
• Operating temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Relative humidity: 10 – 95 %, non-condensing
• Length: 450 mm (17.72 in)
• Jacket Material: PVC (Polyvinyl Chloride)
• Color: white

Interface Specifications

• Cable Type: USB 2.0
• Connector 1: USB-C plug/ adapter to USB-A
• Connector 2: Optris 5-pin cable for terminal block

Does the IRmobile exist on Apple phones?

Apple iPhones do not support the required USB-OTG (On The Go) interface and are therefore not supported.

How do I connect the cable?

Please review the manual of the specific pyrometer for the correct connection.

• 1x USB IRmobile App Connector Cable for pyrometers
• 1x USB C female to USB A male
