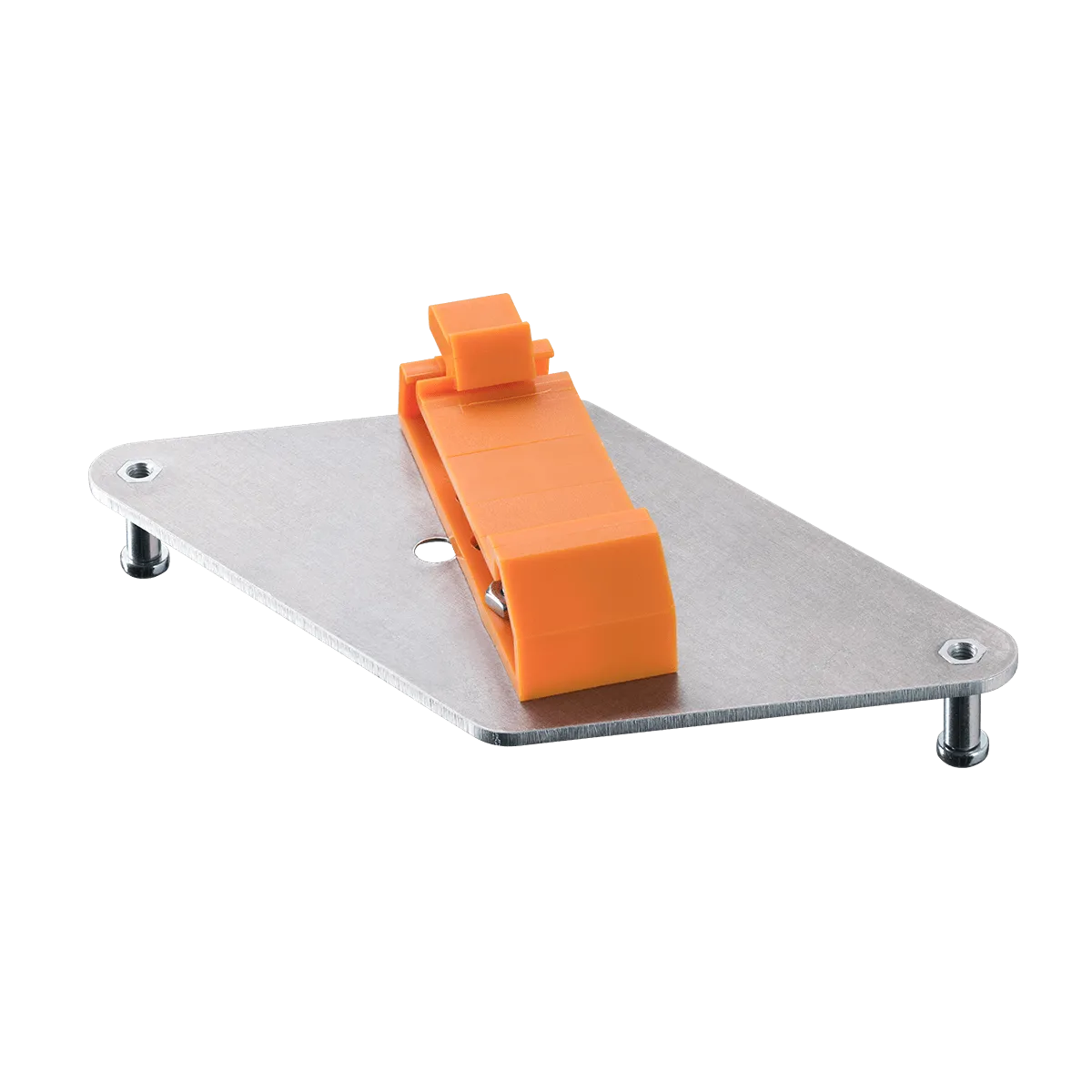

Rail Mount Adapter for Electronic Box

The Rail Mount Adapter is an essential accessory for securely and efficiently installing two-piece pyrometers onto DIN rails in cabinets.

The Rail Mount Adapter is an essential accessory for securely and efficiently installing two-piece pyrometers onto DIN rails in cabinets. This DIN rail mount is a standardized metal rail used for mounting electrical and industrial control equipment inside equipment racks and cabinets. They come in various sizes, with the most common type being the TS35 rail, which is 35 mm (1.38 in) wide. This adapter allows the electronic box of a two-piece pyrometer to be effortlessly mounted on a DIN rail (TS35) according to EN50022 standards, ensuring a stable and organized setup.
  • Compatible to all two-piece infrared sensors from Optris
  • Secures electronics box on DIN rail
  • Easy installation

$30.00

excl. sales taxes, custom tariffs and shipping

Product Description

The Rail Mount Adapter is an essential accessory for securely and efficiently installing two-piece pyrometers onto DIN rails in cabinets. It allows the electronic box to be effortlessly mounted on a DIN rail (TS35) according to EN50022 standards, ensuring a stable and organized setup.

  • Compatible to all two-piece infrared sensors from Optris
  • Secures electronics box on DIN rail
  • Easy installation
Specification

General Specification

Operating temperature: 0 °C to 75 °C (32 °F to 167 °F)
Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Material: Aluminium magnesium silicon alloy
Size: 93 x 74 x 22 mm (3.66 x 2.91 x .87 in)
Mounting: DIN rail (TS35), MOFU 35

Downloads
FAQs

Which screw size do I need for mounting the mount rail onto the CT electronic box?

All mounting and installation materials are in the scope of supply.

Can the accessory be used in outdoor environments?

Normally, this accessory shall be used indoor inside industrial cabinets only.

Scope of Supply
  • 1x DIN rail mount adapter
  • 1x Installation material
