EasyComm
Simple Software Communication Interface for all Optris Autonomous Infrared Cameras
Highlights of the EasyComm
- Direct access to radiometric temperature data
- Continuous radiometric video data streaming
- Processes temperature calculations within infrared camera device
- Easy integration, OS-independent
- Requires no PIX Connect, only for setup
- Simple function calls in C#

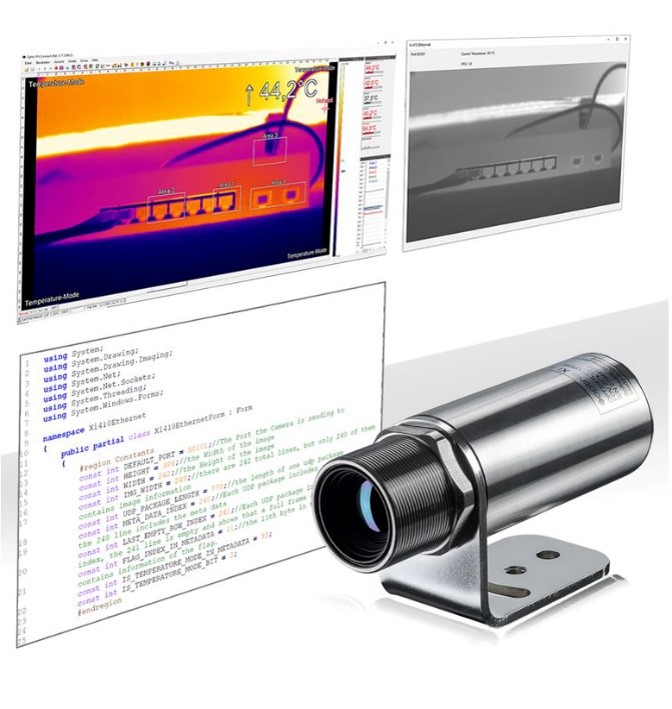

EasyComm for straightforward Integration of Optris Autonomous Infrared Cameras
EasyComm is a communication interface designed for seamless integration, offering direct access to radiometric temperature data from Optris autonomous infrared cameras. Utilizing UDP protocol for real-time data streaming, the communication interface supports Ethernet infrared cameras with no PIX Connect dependency.
Its C# programming examples and OS independence make it an ideal, user-friendly solution for developers for quick developments.
Contact direct-sdk@optris.com for SupportSimplifying Integration for Seamless Temperature Data Access to Optris Autonomous Infrared Cameras

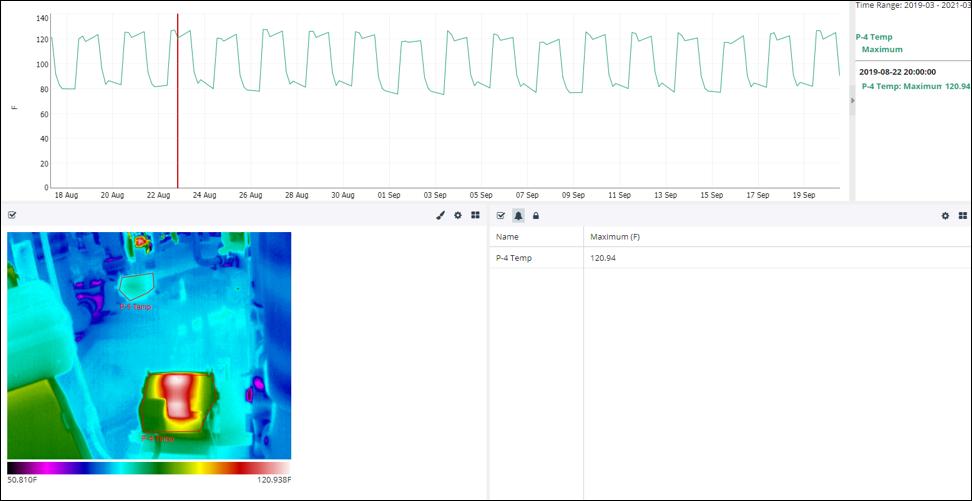

EasyComm is a communication interface enabling developers to access ready-to-use temperature data directly from Optris infrared cameras. Released in 2021, EasyComm processes complex temperature calculations within the device itself, streaming temperature information for all pixels to the user. This is accomplished through the User Datagram Protocol (UDP), a communication model that ensures fast data transfer, though it does not have a handshake mechanism.
Infrared cameras with Ethernet interfaces act as UDP clients, continuously dispatching radiometric video data packets to a user-selectable port without initiating the transfer. The UDP server monitors this designated port, facilitating smooth data reception. The standout feature of EasyComm is its seamless integration and OS independence, ensuring it can work with a variety of operating systems, including Linux. However, it only supports images with autonomous mode and functions as a limited control on the infrared camera, operating at a relatively slow speed.
EasyComm samples are coded in C# and come with executable examples. The software functions without the need for PIX Connect, except during the initial setup phase.
Despite operating at a reduced bandwidth, particularly with the Xi 410 model at 1.5 Hz, EasyComm supports real-time data streaming. This limitation is balanced by the software’s quick and easy integration, allowing users to retrieve temperature data efficiently with minimal effort. EasyComm is compatible with any operating system and computer architecture, emphasizing its flexibility and broad applicability. Overall, EasyComm offers a modern, user-friendly solution for accessing infrared temperature data, underpinned by straightforward, simple function calls and minimal setup requirements.
Hardware & Software Requirements
Minimum system requirements:
- Ethernet interface
- UDP server capabilities
Documentation
Download
DOWNLOAD
ZIP – 327.29 KB
EasyComm Samples
Complete the form to download the file
DOWNLOAD
PDF – 376.38 KB
EasyComm via Ethernet
Complete the form to download the file
FAQs
Does the EasyComm require the PIX Connect to run in the background?
No, the infrared cameras process the temperature directly with the infrared cameras processor and forward radiometric temperature values as a data stream.
Where can I get support?
Contact direct-sdk@optris.com for support.
What level of support can I expect?
Please be aware that Optris does not provide in-depth support regarding the SDKs; this is covered by several examples and extensive documentation. Free support includes bug-fixing in the SDK and its examples but not troubleshooting user software or accelerated development and integration of new features. Nevertheless, Optris can recommend integration and service partners for custom software development if needed.
What are user prerequisites for handling the EasyComm?
Optris recommends that developers have a professional software development/programming, information technology, or similar background. Additionally, developers should be familiar with Windows operating systems, Visual Studio, and coding languages C++ or C#.
What interface is supported by EasyComm?
Ethernet is supported and examples for the imagers are available.
Where can I find sample code and documentation?
Please download and install the PIXConenct. There is a documentation folder in your PIXConnect program folder: “…\Optris GmbH\PIX Connect\documentation”
Which software languages are supported?
Optris provides executable sample codes in C# and executable sample files.
Which infrared cameras are supported?
The EasyComm interfaces are only supported for smart infrared cameras that feature the autonomous mode, such as the Xi 80, Xi 410, Xi 410 MT, and Xi 1M.
Is the PIX Connect required?
The interface requires PIX Connect only during the infrared cameras’ configuration phase, which simplifies the integration process into existing systems. This reduced complexity significantly benefits users.
How do I set up the infrared camera for EasyComm?
To use EasyComm, users must install the Optris PIX Connect software and configure the camera, ensuring the “Flag automatic” setting is enabled. Configuration settings must then be saved to the camera. The camera streams temperature data in UDP packets, each containing pixel temperatures formatted with headers indicating row and image counters. The specific streaming format can vary between camera models. Once the camera is set up and streaming data, users can employ software examples provided within PIX Connect to establish a UDP server, gather temperature data, and display it in a user interface.
