Connect SDK
Windows-native Software Development Kit based on the PIX Connect for all Optris Infrared Cameras
Highlights of the Connect SDK
- Provides Dynamic Link Library (DLL) for embedding data
- Offers extensive features like PIX Connect software
- Sample programs in C#, C++, VC++.NET
- Extensive interprocess communication (IPC) to PIX
- Connect
Requires PIX Connect software running in the background - Supports Windows platforms only
Windows-based SDK requiring Full Feature Set from PIX Connect
The Connect SDK from Optris offers a full integration of infrared cameras into various applications. Designed for Windows, it requires PIX Connect software for interprocess communication.
This API supports embedding colors, temperatures, or ADU values into other applications via DLL without handling radiometric data processing. Key features include changing color palettes, scaling temperature ranges, and adjusting thermal images. Extensive documentation and sample programs ensure ease of use.
Contact direct-sdk@optris.com for SupportComprehensive software development kit for interprocessing with the PIX Connect

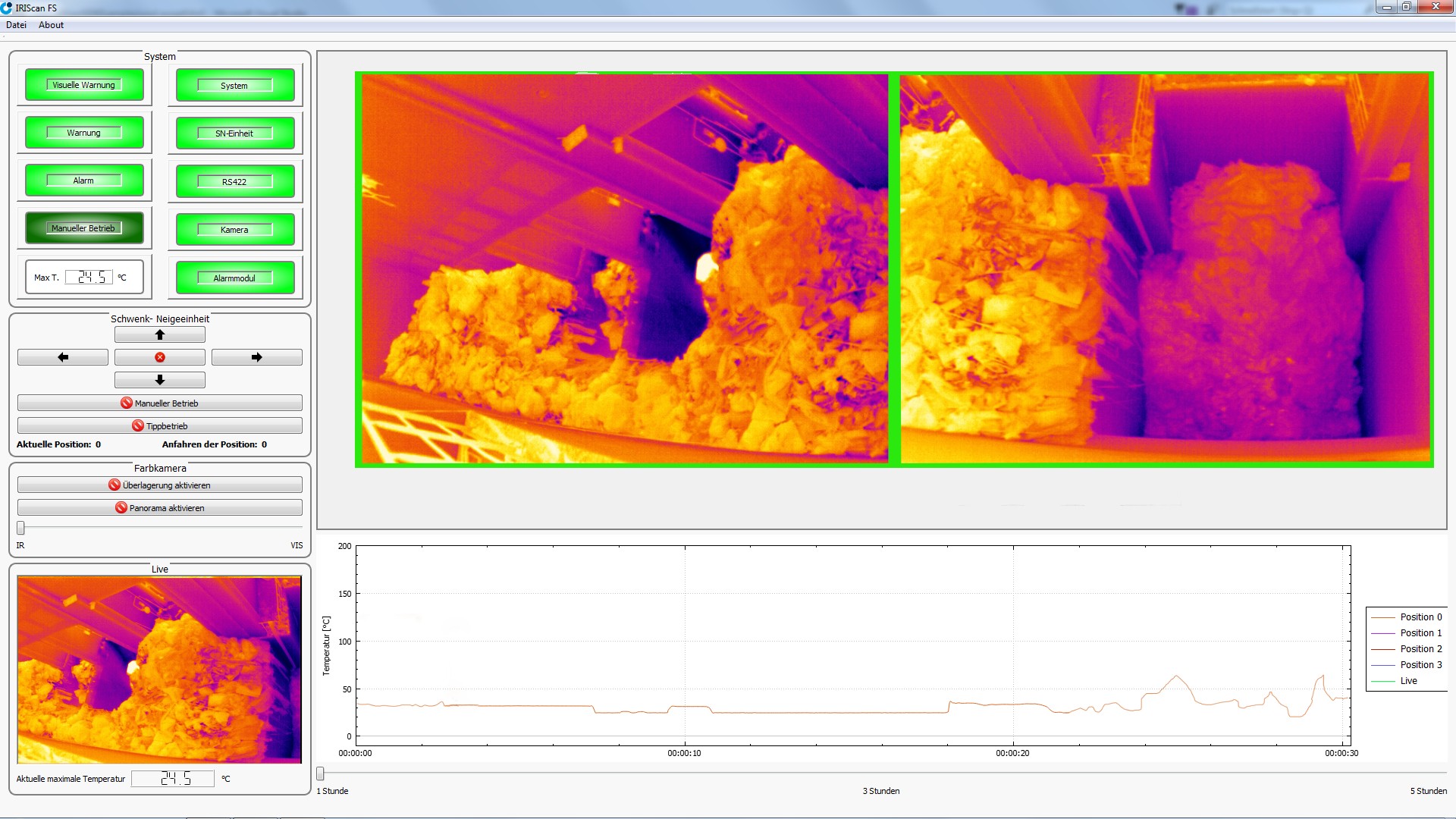

The Connect SDK from Optris offers a comprehensive solution for integrating Optris infrared cameras into various applications. It provides extensive functionalities through the PIX Connect software. Designed for Windows platforms, the Connect SDK requires the PIX Connect software to run in the background, enabling interprocess communication (IPC) between the Optris software and a third-party software application. This API supports various operations, allowing users to embed colors, temperatures, or ADU values from the infrared camera into other applications via a Dynamic Link Library (DLL) without having to deal with radiometric data processing, calibration files, and hardware-related settings.
One of the key advantages of the Connect SDK is its extensive feature set, which mirrors most of the capabilities found in the very capable PIX Connect software. Users can change color palettes, convert temperature units, scale temperature ranges, adjust display frame rates, trigger the shutter, and access the process interface. Additionally, the SDK allows for the arrangement of thermal images, including mirroring, rotation, and zooming, as well as the adjustment of detector heating and emissivity settings.
The PIX Connect software that needs to run in the background can also start in the hidden mode so that no Optris software could distract the operator and stays invisible.
The Connect SDK is well documented with a variety of sample programs in C#, C++, and VC++.NET, aiding developers in quickly implementing its functionalities. These samples can be accessed through the PIX Connect software menu, ensuring ease of use and integration. The software development kits employs an object-oriented programming style and runs on any computer architecture, provided it is a Windows OS.
Hardware & Software Requirements
Minimum system requirements:
- Windows operating system
- USB 2.0-interface
- At least 2 GB RAM
- 2,0 GHz processor power
Recommended system requirements:
- Windows 10
- At least 2 GB hard disk storage for IR videos
- At least 4 GB RAM
Documentation
Download
DOWNLOAD
ZIP – 1.05 MB
Connect SDK Samples
Complete the form to download the file
DOWNLOAD
PDF – 633.98 KB
Connect SDK Description
Complete the form to download the file
Datasheet
FAQs
Where can I get support?
Contact direct-sdk@optris.com for support.
What level of support can I expect?
Please be aware that Optris does not provide in-depth support regarding the SDKs; this is covered by several examples and extensive documentation. Free support includes bug-fixing in the SDK and its examples but not troubleshooting user software or accelerated development and integration of new features. Nevertheless, Optris can recommend integration and service partners for custom software development if needed.
What are user prerequisites for handling the Connect SDK?
Optris recommends that developers have a professional software development/programming, information technology, or similar background. Additionally, developers should be familiar with Windows operating systems, Visual Studio, and coding languages C++ or C#.
Where can I find sample code and documentation?
Please download and install the PIXConenct. There is a documentation folder in your PIXConnect program folder: “…\Optris GmbH\PIX Connect\documentation”
Does the Connect SDK run on Linux?
No, the Connect SDK is designed to run on Windows and relies on PIX Connect and interprocess communication.
Which software languages are supported?
Our kit is inclusive, providing executable sample codes in C#, C++, and VC++.net.
Which infrared cameras are supported?
All infrared cameras from the PI and Xi series are supported.
